SUS304N Stainless Steel Mesh Cloth , Ultra Thin Stainless Steel Wire
Description of the Steel Screen Printing Mesh :
Each SUS304N Thick Film Hybrid 200 mesh Stainless Steel Screen Printing Roll Plain Weave weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.We can supply the mesh from 30 mesh to 500 mesh.
| Material | SUS304N |
| Weave | Plain weave |
| Features | Non-electrostatic |
| Sample | Free.The freight should be paid by buyer |
| Width | 1m,1.22m |
Featuers of the Steel Screen Printing Mesh :
High-Flexibility: The wire mesh will not lose elasticity at extremely tension.
High tension.Much higher tension than common polyester mesh,and this property is very stable.
Low Elongation: Very small elongation of wire mesh at igh tension.
High-Corrosion Resistance: The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.
Non-electrostatic: To avoid affects of nonelectrostatic for printing and ensure the safety of printing.
Good Solvent Resistance: To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.
Specification of the Steel Screen Printing Mesh :
| Specification | Mesh/inch | Wire Dia (μm) | Open area Ratio(%) | Apereture (μm) | Thickness(mm) | Calendered Thickness (μm) | Theoretical lnk(cm2/m2) |
| 230*230*35 | 230 | 35 | 46.7 | 75 | 72-76 | 50-67 | 37.0 |
| 250*250*40 | 250 | 40 | 36.8 | 62 | 82-86 | 50-80 | 30.0 |
| 270*270*35 | 270 | 35 | 39.4 | 59 | 76-80 | 58-70 | 30.0 |
| 300*300*30 | 300 | 80 | 41.7 | 55 | 66-68 | 40-59 | 28.0 |
| 325*325*30 | 325 | 30 | 38 | 48 | 66-68 | 45-60 | 24.0 |
| 325*325*28 | 325 | 28 | 41.2 | 50 | 63-64 | 40-56 | 26.4 |
| 350*350*25 | 350 | 25 | 43.0 | 48 | 52-54 | 41-50 | 18.7 |
| 400*400*23 | 400 | 23 | 40.7 | 41 | 50-54 | 35-48 | 19.0 |
| 500*500*18 | 500 | 18 | 41.7 | 33 | 36-40 | 28-30 | 15.3 |
| 200*200*50 | 200 | 0.05 | 37 | 77 | 98-103 | As order | 42.0 |
Application of the Steel Screen Printing Mesh :
The stainless steel printing screen has many functions, such as making solar cells.pint board (PCB),chip electronic components,flat panel displays,liquid crystal display (LCD),plasma display panel (PDP), etc.
Please feel free to contact us if you wish to know more.
Product Tags:
|
|

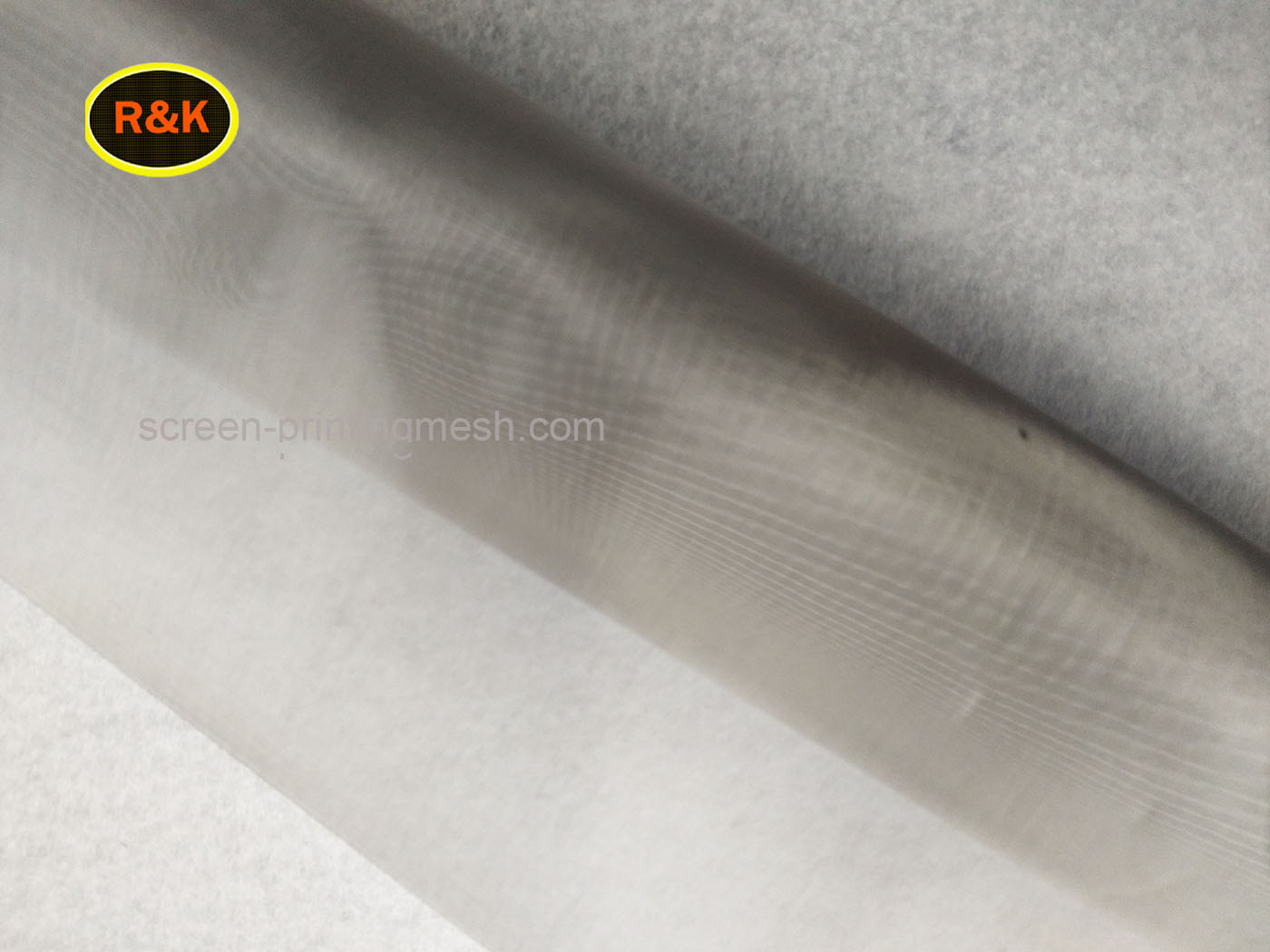

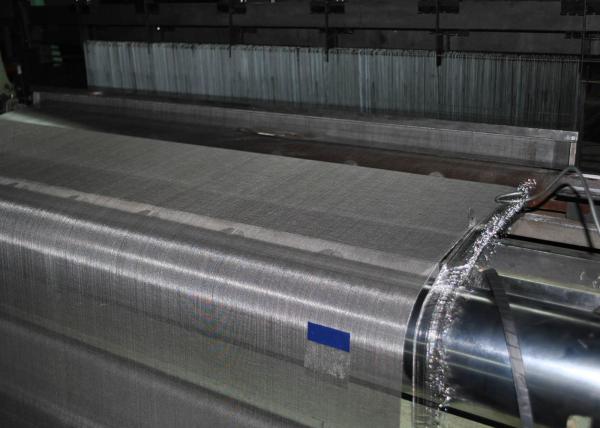

SUS304N Stainless Steel Mesh Cloth , Ultra Thin Stainless Steel Wire Images
|
